Moto Edge 60 Fusion (Model XT2503-2) FRP Remove UMT Mtk Pro

This comprehensive guide provides the step-by-step procedure to remove the Factory Reset Protection (FRP) lock on the Moto Edge 60 Fusion (Model XT2503-2) using Ultimate Multi Tool (UMT) MTK Pro. When a Motorola device running on a MediaTek (MTK) chipset gets stuck on the Google Account verification screen after a hard reset, flashing a modified LK (Little Kernel) image allows the service tool to bypass secure authentication and clear the lock partition.

• • Hardware Tool:- UMT Dongle or UMT Pro Box with an active subscription.
  • Software Module:- UltimateMTK (UMT MTK Pro) application.
  • Drivers:- Latest MediaTek (MTK) USB Drivers and Motorola Mobile Device Drivers installed on your PC.
  • Hardware Link:- A high-quality USB data cable.
  • Device Status:- Battery charged to at least 50% to prevent unexpected shutdowns during execution.

1. 1. Download the custom Moto XT2503-2 LK Image zip file using the official mirror link provided at the bottom of this article.
   2. Extract the file contents (lk.img) to a dedicated folder on your computer desktop.

1. 1. Turn off your Moto Edge 60 Fusion completely.
   2. Press and hold the Volume Down and Power buttons simultaneously.
   3. Release the keys as soon as you see the black Motorola bootloader screen displaying Fastboot Mode status along with technical device info.
   4. Plug the USB cable into the phone and connect it to your PC.

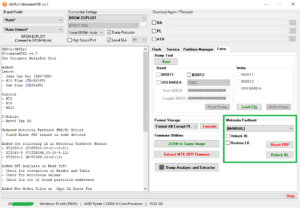

1. 1. Open the UltimateMTK tool dashboard.
   2. Navigate to the Fastboot / Motorola Functions tab located in the tool interface.
   3. Click on Read Info (Fastboot) to check connection stability. The log window should correctly recognize your phone as XT2503-2.
   4. Look for the Manual Flash / Partition Flashing section inside the Fastboot module.
   5. Check or highlight the LK Partition checkbox.
   6. Click the directory button next to it, browse to your desktop folder, and load your downloaded lk.img file.

1. 1. With the file loaded and the device verified in Fastboot, click the Write Partition or Flash LK button.
   2. The software will execute a fastboot protocol command to overwrite the security block with the raw kernel code. Wait until the terminal log prompts a success status.
   3. Once flashed, look for the service operation button labeled Reset FRP (Fastboot) or Erase FRP under the same module toolbar.
   4. Click Execute. The tool will use the newly flashed LK image environment to format the persistent configuration block where Google credentials are saved.
   5. Keep the phone steady until the execution box registers a “Reset FRP… OK” confirmation message.

1. Once the process completes successfully, phone will Reboot automatically, or select “Start” on the phone screen using the Volume keys and press the Power button to confirm.
2. The device will reset and boot to the system initialization wizard.
3. Advance through the configuration menus. When prompted for the Google Account, click the newly activated Skip / Set up offline option to enter the home screen.

Download Motorola Edge 60 Fusion (Scout) LK Image

RETIN XT2505-2 SCOUT RETIN 15 V2VCS35.33-132-6-1
RETIN XT2503-2 SCOUT RETIN 16 W1VCS36H.14-20-19-7
